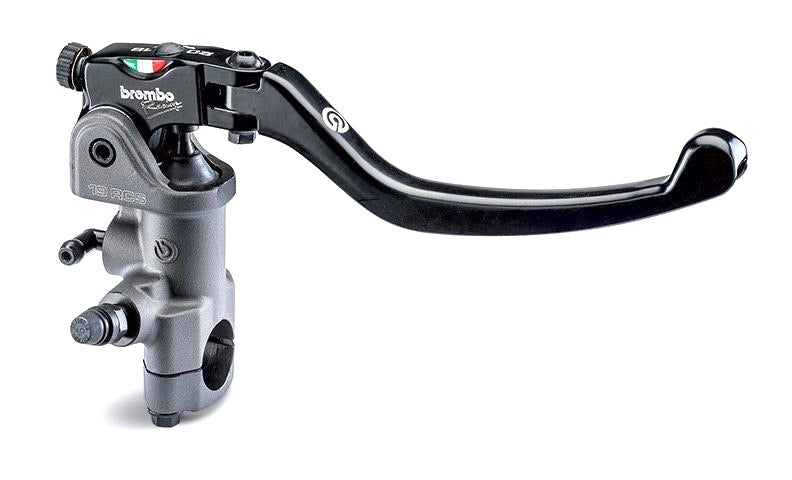

Brembo 19RCS brake master cylinder
The Brembo 19RCS Master Cylinder is optimized for dual-caliper, four-piston braking systems. It utilizes a massive 19mm piston that provides the maximum amount of stopping power possible.
The Brembo RCS Brake Master Cylinder allows the rider to choose between more power or more precision to best complement their riding style, track/street conditions and other brake components. The unique design of the RCS system offers the flexibility to change the brake lever ratio at the turn of a screw. The 20mm setting provides a more reactive braking response and the 18mm setting allows for better feel and modulation. Additionally, the Brembo lever features an adjustable thumb screw that can be customized to fit a range of riders’ hands. In the event of a crash the outer portion of the lever folds up and away to avoid damage. The patented master cylinder is constructed of forged aluminum and then CNC machined down to remove any excess weight. All of its components, including the piston, seals and pushrod, are the same as those used in MotoGP and WSBK.
- Forged aluminum body
- Hard anodized finish
- Adjustable and folding aluminum lever
- Large 19mm piston
- Lever ratio of 18mm and 20mm
- Weight: ~350 gr
- Brake fluid: DOT 4
- Mounts to most 22mm (⅞) diameter handlebars
- Includes universal brake light switch
- Includes double banjo bolt (M10x1.0)
- Brembo Brake Reservoir Kit available (sold separately)
- Brembo Remote Adjuster available (sold separately)
- Compatible with most OEM ABS brake systems
